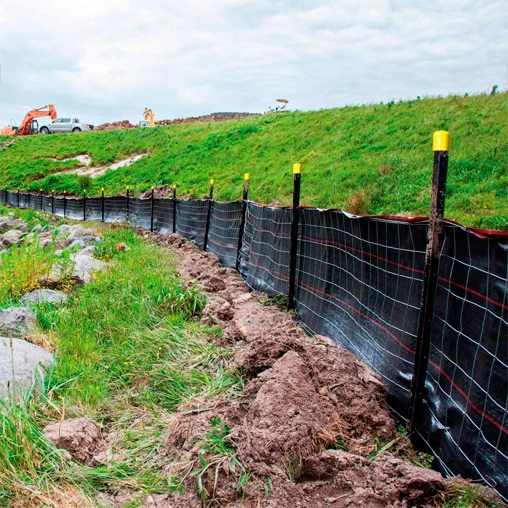

A wire back silt fence is a temporary sediment barrier constructed using an entrenched non woven geotextile fabric with welded wire. It is specifically designed to intercept and slow the flow of sediment-laden sheet flow runoff that originates from small areas of disturbed soil. The primary purpose of using a wire backed silt fence with stakes is to reduce the length of the slope in the disturbed area and effectively intercept and retain sediment that is being transported from those areas.
Being lightweight ensures that the silt control measures are manageable and can be easily transported and installed on-site. This characteristic simplifies the logistics and reduces the effort required for implementation, making the process more efficient.
Ease of installation is crucial as it saves time and labor resources. Construction sites often have tight schedules, and having silt control measures that are easy to install allows for quick deployment, minimizing disruptions to the construction process.
Silt Fence with Welded Wire | ||||
Item Code | Roll Size | Welded Wire | Fabric | Fabric Size |
WBSF001 | 24" X100' | 14AWGX2" X4" | 70G | 36" X100' |
WBSF002 | 24" X100' | 14AWGX2" X4" | 100G | 36" X100' |
WBSF003 | 36" X100' | 14AWGX2" X4" | 100G | 48" X100' |
WBSF004 | 24" X100' | 14AWGX4" X4" | 70G | 36" X100' |
WBSF005 | 24" X100' | 14AWGX4" X4" | 100G | 36" X100' |
WBSF006 | 36" X100' | 14AWGX4" X4" | 100G | 42" X100' |
WBSF007 | 24" X100' | 12.5AWGX2" X4" | 100G | 36" X100' |
WBSF008 | 36" X100' | 12.5AWGX2" X4" | 100G | 48" X100' |
WBSF009 | 30" X100' | 12.5AWGX2" X4" | 100G | 36" X100' |
Non-Woven Silt Fence with Welded Wire | ||||
Item Code | Roll Size | Welded Wire | Fabric | Fabric Size |
WBSF001 | 24" X100' | 12.5GaugeX2" X4" | 170G | 36" X100' |
WBSF002 | 24" X100' | 14GaugeX2" X4" | 135G | 36" X100' |
WBSF003 | 24" X100' | 1.95MMX2" X4" | 210G | 36" X100' |
WBSF004 | 24" X100' | 2.4MMX2" X4" | 200G | 36" X100' |
Silt Fence with Field Wire | |||
Item Code | Field Wire | Fabric | Fabric Size |
WBSF001 | 14.5AWGX32" X110' | 70G | 3' X110' |
WBSF002 | 12.5AWGX32" X110' | 70G | 3' X110' |
WBSF003 | 14.5AWGX32" X330' | 70G | 3' X330' |
WBSF004 | 12.5AWGX32" X330' | 100G | 3' X330' |
Note: Vertical wire pitch: 12" Line Wire No.: 6pcs or 8pcs. In addition to the 32" height, there are 39" and 47" height, line wire qty will be 9pcs. Some clients would like to get the wire by BWG. | |||
Super Silt Fence |
11-1/2Gaugex42" x50' Chain Link Fence |
48" x50'/300' Black Silt Fence |
2.5" x6' Galvanized Fence Post |
Hog Rings |
Aluminium Tie Wire |
Erosion&Sediment Control
Construction Site
Road Work
Other Job Locations
By having a higher silt-holding capacity, the measures can retain a larger volume of sediment before reaching their maximum capacity. This means they can effectively capture and retain sediment for a longer duration, reducing the frequency of cleaning or replacement.
The wire backing provides increased structural integrity, enhancing the fence's resistance to external factors such as wind, debris, or accidental impacts. This added strength helps to maintain the effectiveness of the fence over a longer duration, minimizing the need for frequent replacements or repairs.
By adhering to DOT specifications, our Wire Back Silt Fence is constructed with robust materials and reinforced with a wire backing to ensure superior durability and performance. These fences are engineered to withstand the challenging conditions encountered on job sites and effectively contain and retain sediment, preventing it from leaving the site and entering stormwater drainage systems.
