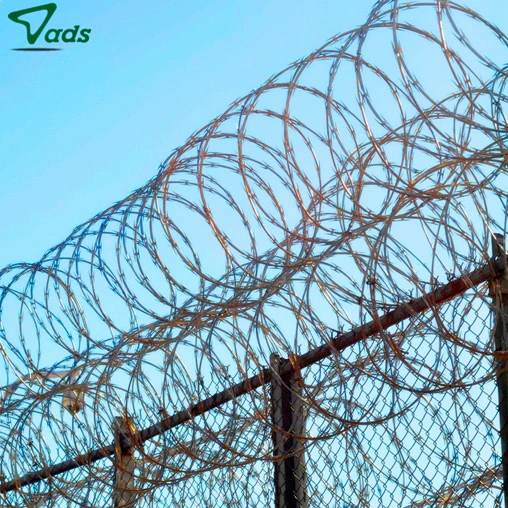

Spiral Razor Wire is an exceptional security solution designed to meet your specific needs. Crafted from durable galvanized barbed tape wire and high-tensile claps formed in large coils, this coiled barbed wire fencing offers unrivaled strength and reliability. Its primary purpose is to provide a formidable barrier that effectively deters and discourages potential intruders. Shenzhou Andesen Wire Fencing Co., Ltd. provides OEM spiral razor barbed wire service.
The key feature of the Spiral Razor Wire lies in its exceptional deterrent capabilities. Its sharp barbs, strategically positioned along the wire, create an imposing and intimidating presence, sending a clear message to potential intruders. The formidable barrier it creates acts as a powerful psychological deterrent, significantly reducing the likelihood of unauthorized access.
Spiral Razor Wire | ||||||||
Reference Number | BTO-10 | BTO-12 | BTO-18 | BTO-22 | BTO-28 | BTO-30 | CBT-60 | CBT-65 |
Blade Pattern |
|
|
|  |
|
|
|
|
Model | Thickness | Core Wire Dia | Blade Length | Blade Width | Blade Space | |||
BTO-10 | 0.5mm+/-0.05mm | 2.5mm+/-0.1mm | 10mm+/-1mm | 13mm+/-1mm | 26mm+/-1mm | |||
BTO-12 | 0.5mm+/-0.05mm | 2.5mm+/-0.1mm | 12mm+/-1mm | 15mm+/-1mm | 26mm+/-1mm | |||
BTO-18 | 0.5mm+/-0.05mm | 2.5mm+/-0.1mm | 18mm+/-1mm | 15mm+/-1mm | 33mm+/-1mm | |||
BTO-22 | 0.5mm+/-0.05mm | 2.5mm+/-0.1mm | 22mm+/-1mm | 15mm+/-1mm | 34mm+/-1mm | |||
BTO-28 | 0.5mm+/-0.05mm | 2.5mm+/-0.1mm | 28mm+/-1mm | 15mm+/-1mm | 45mm+/-1mm | |||
BTO-30 | 0.5mm+/-0.05mm | 2.5mm+/-0.1mm | 30mm+/-1mm | 18mm+/-1mm | 45mm+/-1mm | |||
CBT-60 | 0.5mm+/-0.05mm | 2.5mm+/-0.1mm | 60mm+/-2mm | 32mm+/-1mm | 100mm+/-2mm | |||
CBT-65 | 0.5mm+/-0.05mm | 2.5mm+/-0.1mm | 65mm+/-2mm | 21mm+/-1mm | 100mm+/-2mm | |||
Coil Diameter | No. Of Loops | Stretch Length | Blade Type | Coil Type |
450mm | 33 | 8m | CBT-65 | Single |
500mm | 41 | 10m | CBT-65 | Single |
700mm | 41 | 10m | CBT-65 | Single |
960mm | 53 | 13m | CBT-65 | Single |
500mm | 102 | 16m | BTO12, 18, 22 | Cross |
600mm | 88 | 14m | BTO12, 18, 22 | Cross |
700mm | 72 | 12m | BTO12, 18, 22 | Cross |
800mm | 64 | 10m | BTO12, 18, 22 | Cross |
960mm | 52 | 9m | BTO12, 18, 22 | Cross |
Spiral razor wire is mainly used for military affairs, prison, government, bank, ship(vessel) and also in living wall, personal house, villa wall, window, autobahn, railway and border of the fence.
It can be easily installed on various types of perimeter fencing and walls, adapting seamlessly to your existing security infrastructure. This flexibility allows for efficient and cost-effective installation, minimizing disruption to your operations while maximizing security coverage.
Crafted from durable galvanized barbed tape wire and engineered with corrosion-resistant properties, this product ensures optimal performance even in wet conditions.
