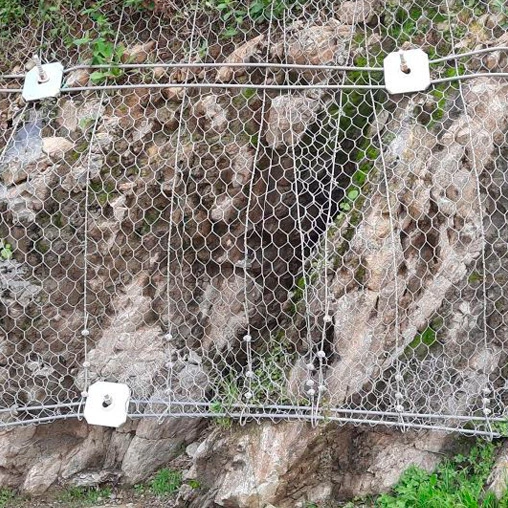

Rock fall protection mesh is a specialized type of netting that is designed to provide safety and protection against rockfall and slope instability. It is engineered using a double-twisted hexagonal woven steel wire mesh, which offers strength, durability, and flexibility. Additionally, integral longitudinal or lateral reinforcement rope wires are woven into the mesh to further enhance its structural integrity.
Varies of material matches with your different project request.
1) Galvanized Wire: zinc weight can be from 40g to 280g per square meter.
2) Aluminum-Zinc Coated Wire(Alu 5% or Al 10%): zinc weight can be from 200g to 500g per square meters.
| Item 1 | Mesh size (mm) | Wire thickness (mm) | Width (m) | Length(m) | |
| Gabion Mesh | 80X100 | 2.0-3.0 | 2 | 20/25/30/50 | |
| Item 2 | Wire Diameter(mm) | Reinforcement Direction | Structure | Tension Strength | Breaking load of rope |
| Steel rope | 6-8 | Longitudinal or transverse | 6X36IWRC | Max 2160N/MM² | 50KN |

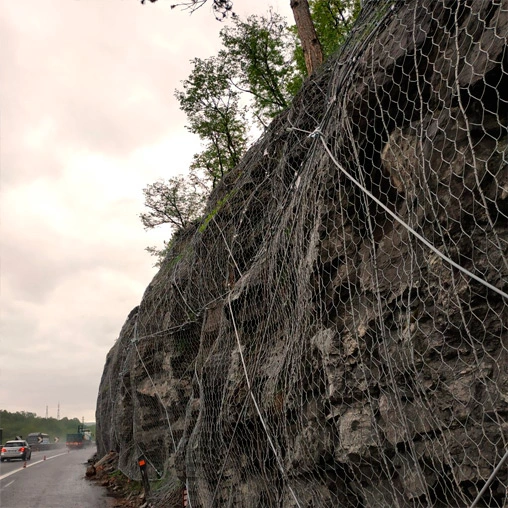

The rock fall protection mesh are used to prevent small size boulders or rocks from falling in road ways, the mine, the water and electricity project, the tourist site, the river course and in the municipal engineering.
Rock fall protection mesh is designed to withstand harsh environmental conditions and long-term exposure to the elements. The use of high-quality materials, such as the double-twisted hexagonal mesh and reinforcement rope wires, ensures the netting's durability and longevity.
Rockfall protection mesh often incorporates integral reinforcement ropes or cables that are woven into the mesh. These reinforcement elements further enhance the strength and stability of the system, improving its performance against high-energy rockfall events.
Rockfall protection mesh can be customized to suit specific project requirements. The mesh size, wire diameter, and reinforcement configuration can be tailored to the site conditions and expected rockfall energy levels, ensuring optimal protection. Learn about the rockfall netting installation now!
Rockfall protection mesh offers a cost-effective solution for mitigating rockfall hazards compared to more complex engineering measures. It provides reliable protection while minimizing the need for extensive excavation or slope stabilization works.
