Rapid Deployment Barrier

Rapid Deployment Barrier

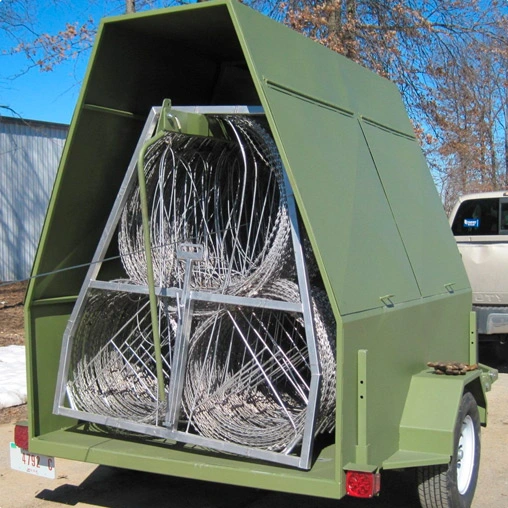

Rapid deployment barriers, also known as mobile security barriers, are designed to offer quick and efficient protection in riot or emergency situations. These barriers consist of concertina razor wire that can be rapidly deployed, providing an immediate barricade over a distance of 70-100 meters.

Contact Andesen

Features of Rapid Deployment Barrier

The reusability of these mobile security barriers offers significant advantages. Firstly, it brings cost savings by eliminating the need for frequent replacements. Once the OEM spiral razor barbed wire has fulfilled their initial purpose, they can be carefully disassembled, stored, and reassembled whenever necessary. This reduces the overall expenditure on security barriers over the long term.



Specification of Rapid Deployment Barrier

RDB Razor Wire Coil Options

Model

BTO-10

BTO-18

BTO-22

BTO-30

CBT-60

Pattern






Thickness

0.5mm+/-0.05mm

0.5mm+/-0.05mm

0.5mm+/-0.05mm

0.5mm+/-0.05mm

0.5mm+/-0.05mm

Core Wire Dia

2.5mm+/-0.1mm

2.5mm+/-0.1mm

2.5mm+/-0.1mm

2.5mm+/-0.1mm

2.5mm+/-0.1mm

Blade Length

10mm+/-1mm

18mm+/-1mm

22mm+/-1mm

30mm+/-1mm

60mm+/-2mm

Blade Width

13mm+/-1mm

15mm+/-1mm

15mm+/-1mm

18mm+/-1mm

32mm+/-1mm

Blade Space

26mm+/-1mm

33mm+/-1mm

34mm+/-1mm

45mm+/-1mm

100mm+/-2mm



Diagram of Rapid Deployment Barrier

Diagram of Rapid Deployment Barrier



Application of Rapid Deployment Barrier

Isolation barriers in military organizations. In civilian areas, mobile security barriers play a vital role in maintaining security during riots, gatherings, and demonstrations.

Highlight of Rapid Deployment Barrier

Highlight of Rapid Deployment Barrier

1. Easy to Store
2. Corrosion Resistant
3. Virtually Impossible to Climb
1
Easy to Store

The mobile security barrier is specifically designed to be uplifted and recompressed into modules, providing ease of handling and convenient compression storage. This feature offers several benefits, including efficient transportation, quick deployment, and space-saving storage.

2
Corrosion Resistant

Rapid deployment barrier is commonly coated with zinc to improve its resistance against corrosion. The zinc coating serves as an additional layer of protection, making the razor wire highly durable and suitable for a wide range of outdoor and high-moisture environments.

3
Virtually Impossible to Climb

The mobile security barriers equipped with concertina razor wire are specifically designed to create a highly challenging climbing deterrent. The sharp blades and tangled configuration of the razor wire make it virtually impossible for individuals to climb or breach the barrier.

Rapid Deployment Barrier Production Process
