A PVC coated gabion mattress is a variant of the traditional gabion mattress that features an additional protective polyvinyl chloride (PVC) coating on the double twisted hexagonal mesh. This coating provides enhanced durability and corrosion resistance, making it particularly well-suited for applications where protection against water and moisture is crucial, such as preventing river erosion.
PVC coating is applied to the double twisted hexagonal mesh of the gabion mattress. This coating provides an additional layer of protection against corrosion, moisture, and other environmental factors. It enhances the durability and longevity of the mattress, making it suitable for long-term applications in water environments.
PVC Coated Gabion Mattress | ||||
Regular Size | Mesh Size | |||
Length (m) | Width (m) | Height (m) | 60mmx80mm | |
Mesh Wire | Zinc Weight | |||
3 | 2 | 0.15-0.20-0.25 | 2.2/3.2mm | ﹥245g/m² |
4 | 2 | 0.15-0.20-0.25 | Edge Wire | Zinc Weight |
5 | 2 | 0.15-0.20-0.25 | 2.7/3.7mm | ﹥265g/m² |
6 | 2 | 0.15-0.20-0.25 | Lacing Wire 2.0/3.0mm | |
Customized Size can be done | ||||
Civil Construction, Commercial Landscape
Free Standing Walls & Fences
Retaining Wall Structures
Erosion Control
Civil Works
Scour Protection
Weir Structures

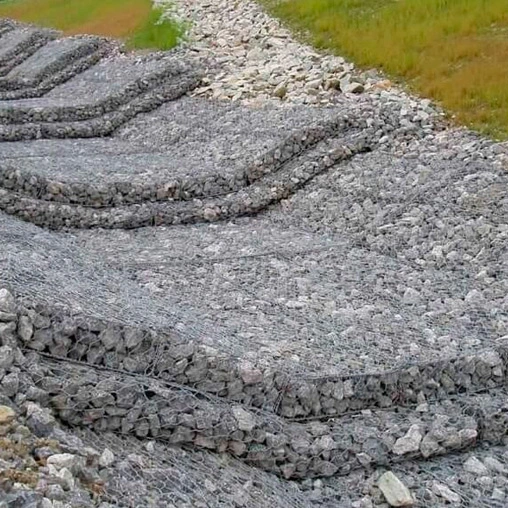

PVC coated gabion mattresses are effective in preventing erosion. They can be used to cover large flat areas, such as riverbeds, to stabilize the soil and prevent erosion caused by water flow and currents. The mattresses act as a protective layer, reducing the impact of water and preventing sediment displacement.
Like traditional gabion mattresses, PVC coated gabion mattresses offer flexibility. They can adapt to the shape and contours of the installation area, allowing for easy installation on uneven surfaces or curved riverbanks.
PVC coated gabion mattresses maintain the permeability characteristic of gabion structures. They allow water to flow through the mattress, maintaining hydraulic balance and preventing excessive water pressure that could lead to erosion.
The PVC coating on gabion mattresses improves their resistance to corrosion, especially in aggressive environments such as rivers or coastal areas. This feature ensures that the mattresses can withstand exposure to water, moisture, and other corrosive elements without compromising their structural integrity.
